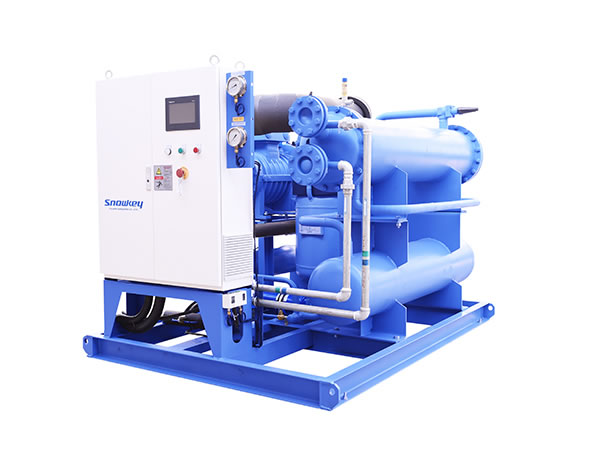

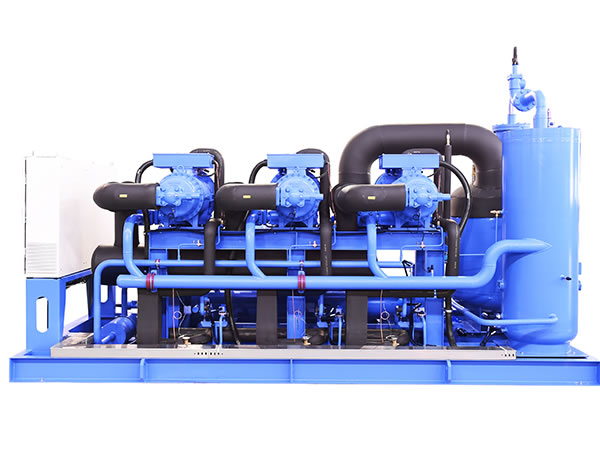

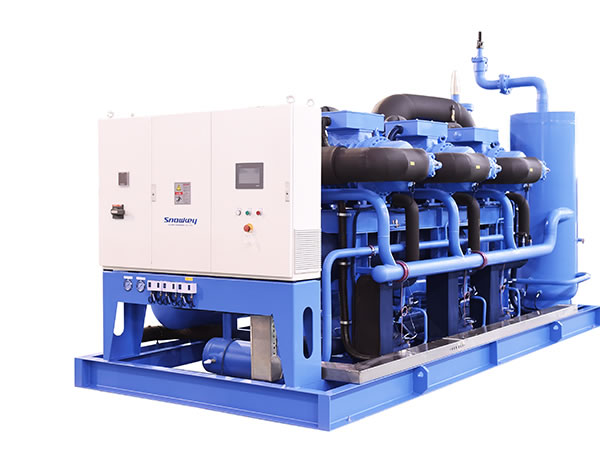

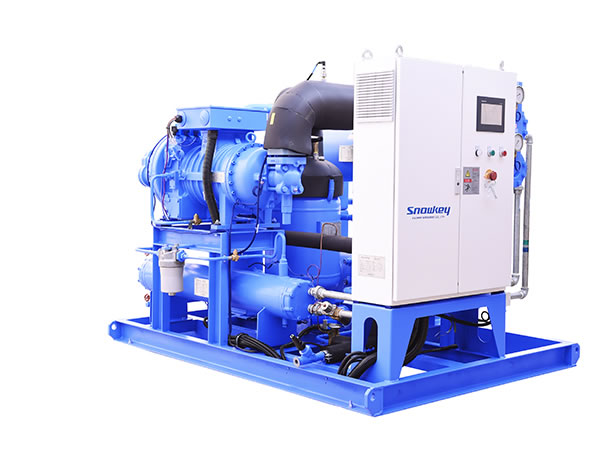

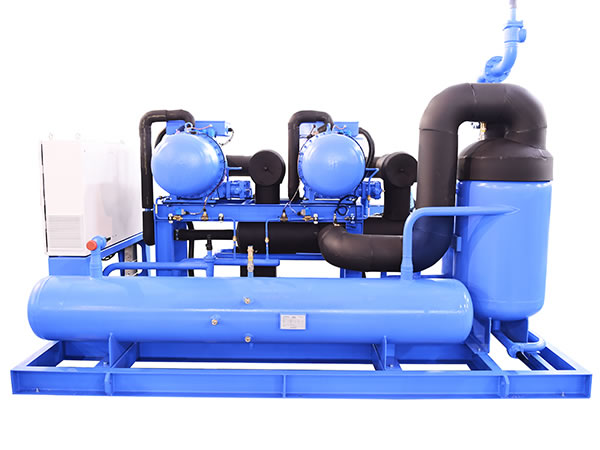

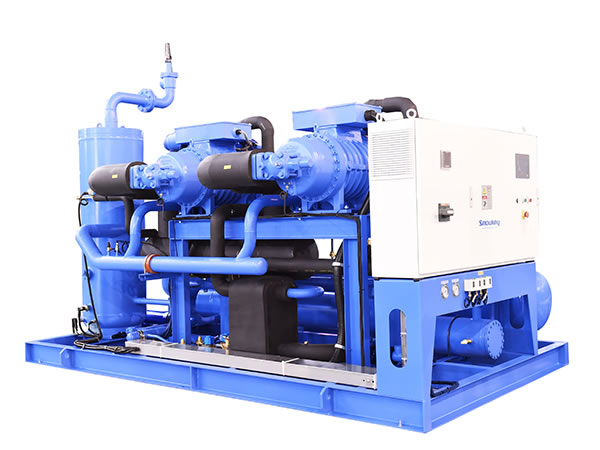

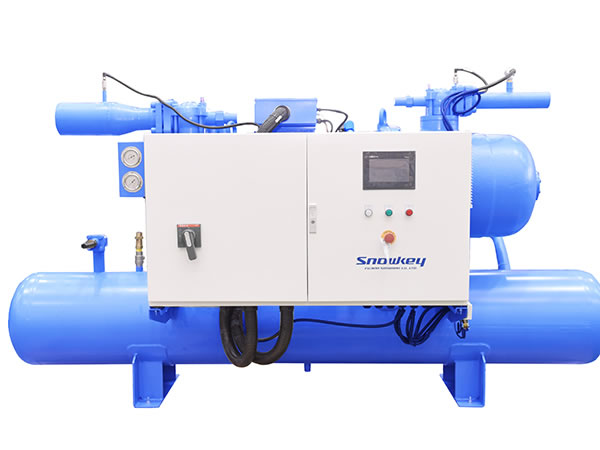

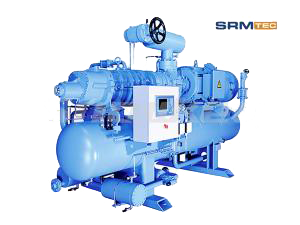

RefComp Screw Compressor Package
Screw compressor units are Snowman’s featured products, adopting RefComps SW series compressors or SRC series screw compressors.

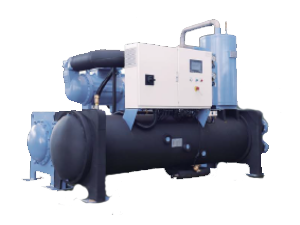

There are water-cooled compressor condensing unit and compressor unit for option.
The design and manufacturing of the unit meet all demands of industrial refrigeration.
The design and layout of all components maximize the reliability and maintainability for operation on site.
RefComp Screw Compressor Package NSWL080A
| Unit Model | NSWL080A | |
| Compressor | Model | SW3L8000 |
| Quantity | 1 | |
| Power（HP) | 80 | |
| Unit Piping(mm） | Discharge Pipe | DN50 |
| Suction Pipe | DN80 | |
| Liquid Pipe | DN40 | |
| Refrigeration Oil | Model | C100 |
| Preliminary Charge Volume（L) | 50 | |
| Reservoir Gross Volume（L) | 150 | |
| Max current（A) | 139 | |
| Staring Mode | Y-∆ | |
| Single Compressor Start Current（A) | 670 | |
| Unit Dimensions L*W*H(mm） | 2500 * 1300 * 1500 | |
| Net Weight (kg） | 1411 | |
RefComp Screw Compressor Package N2SWL130A
| Unit Model | N2SWL130A | |
| Compressor | Model | SW3L13000 |
| Quantity | 2 | |
| Power（HP) | 260 | |
| Unit Piping(mm） | Discharge Pipe | DN80 |
| Suction Pipe | DN150 | |
| Liquid Pipe | DN80 | |
| Refrigeration Oil | Model | C100 |
| Preliminary Charge Volume（L) | 155 | |
| Reservoir Gross Volume（L) | 350 | |
| Max current（A) | 420 | |
| Staring Mode | Y-∆ | |
| Single Compressor Start Current（A) | 1155 | |
| Unit Dimensions L*W*H(mm） | 3600 * 2300 * 2350 | |
| Net Weight (kg） | 4659 | |
RefComp Screw Compressor Package N3SWL130A
| Unit Model | N3SWL130A | |
| Compressor | Model | SW3L130500 |
| Quantity | 3 | |
| Power（HP) | 390 | |
| Unit Piping(mm） | Discharge Pipe | DN100 |
| Suction Pipe | DN200 | |
| Liquid Pipe | DN65 | |
| Refrigeration Oil | Model | C100 |
| Preliminary Charge Volume（L) | 250 | |
| Reservoir Gross Volume（L) | 450 | |
| Max current（A) | 630 | |
| Staring Mode | Y-∆ | |
| Single Compressor Start Current（A) | 1155 | |
| Unit Dimensions L*W*H(mm） | 3800 * 2400 * 2100 | |
| Net Weight (kg） | 5238 | |
RefComp Screw Compressor Package N3SWL080A
| Unit Model | N3SWL080A | |
| Compressor | Model | SW3L8000 |
| Quantity | 3 | |
| Power（HP) | 240 | |
| Unit Piping(mm） | Discharge Pipe | DN80 |
| Suction Pipe | DN200 | |
| Liquid Pipe | DN65 | |
| Refrigeration Oil | Model | C100 |
| Preliminary Charge Volume（L) | 150 | |
| Reservoir Gross Volume（L) | 350 | |
| Max current（A) | 417 | |
| Staring Mode | Y-∆ | |
| Single Compressor Start Current（A) | 670 | |
| Unit Dimensions L*W*H(mm） | 3600 * 2300 * 2100 | |
| Net Weight (kg） | 4119 | |
RefComp Screw Compressor Package NSRC280E
| Evaporating Temperature ℃ | NSRC280E | |||||
| 35 | 40 | 45 | ||||
| Q | P | Q | P | Q | P | |
| -20 | 325.9 | 14506 | 289.1 | 160.6 | 243.9 | 173.3 |
| -15 | 411.9 | 149.7 | 375.7 | 166.9 | 333.4 | 182.8 |
| -10 | 504.6 | 153.2 | 465.9 | 171.8 | 423.5 | 190.2 |
| -5 | 609.4 | 156.5 | 565.1 | 175.7 | 519.5 | 195.8 |
| 0 | 731.6 | 160 | 678.7 | 179 | 626.8 | 200 |
| 5 | 876.6 | 164 | 812 | 182.1 | 750.8 | 203.3 |
| 10 | 1049.9 | 169.1 | 970.6 | 185.4 | 897 | 205.9 |
RefComp Screw Compressor Package N2SWL080A
| Unit Model | N2SWL080A | |
| Compressor | Model | SW3L8000 |
| Quantity | 2 | |
| Power（HP) | 160 | |
| Unit Piping(mm） | Discharge Pipe | DN65 |
| Suction Pipe | DN125 | |
| Liquid Pipe | DN65 | |
| Refrigeration Oil | Model | C100 |
| Preliminary Charge Volume（L) | 140 | |
| Reservoir Gross Volume（L) | 220 | |
| Max current（A) | 278 | |
| Staring Mode | Y-∆ | |
| Single Compressor Start Current（A) | 670 | |
| Unit Dimensions L*W*H(mm） | 3200 * 2150 * 2250 | |
| Net Weight (kg） | 3760 | |
RefComp Screw Compressor Package NSWL160A
| Unit Model | NSWL160A | |
| Compressor | Model | SW3L16000 |
| Quantity | 1 | |
| Power（HP) | 150 | |
| Unit Piping(mm） | Discharge Pipe | DN80 |
| Suction Pipe | DN100 | |
| Liquid Pipe | DN50 | |
| Refrigeration Oil | Model | C100 |
| Preliminary Charge Volume（L) | 70 | |
| Reservoir Gross Volume（L) | 220 | |
| Max current（A) | 236 | |
| Staring Mode | Y-∆ | |
| Single Compressor Start Current（A) | 1155 | |
| Unit Dimensions L*W*H(mm） | 2700 * 1500 * 1700 | |
| Net Weight (kg） | 2015 | |
