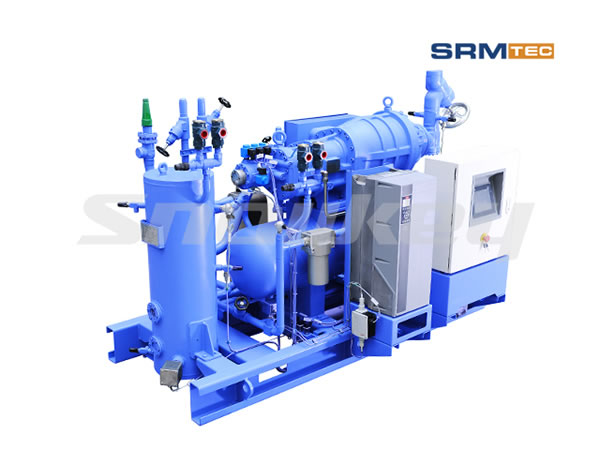

SRMP1V-12 Single Stage Inverter Driven Screw Compressor Package (Semi-hermetic Compressor)

Details

1. It exclusively applies SRM patented technology "i" molded lines, with 5+7 teeth engaged, and features high load bearing, efficient seal and first-class level volumetric efficiency
2. Semi-hermetic screw compressor has permanent magnet motor integrated with compressor, compact in structure; with high efficiency and low charging volume, the compressors can automatically operate alone or in parallel
3. It features an intelligent control system, button start, user-friendly interactive interface, multiple languages available, real monitoring of operation status, historical data storage and recording, and remote communication
4. With SVPWM vector frequency conversion control, it can reasonably distribute motor rotational torque to improve energy efficiency and save up to 38% energy under some load conditions
5. There are ① stepped energy regulation, ② stepless energy regulation and ③ independent or cooperative control of variable frequency regulation, which make energy regulation more precise
6. The rotation speed may reach 6000 rpm by virtue of new technology, which extremely boosts refrigeration capacity
7. The lubrication system achieves oil supply by differential pressure and operates stably, simply and reliably
8. Optimized air distribution cooling motor ensures low noise, low vibration and stable operation
9. Design pressure: 2.8 MPa, and application temperature: evaporating temperature -35℃ and condensing temperature 40℃
10. The unit is equipped with: compressor, SVPWM vector inverter, control center, efficient oil separator, liquid receiver, large-capacity filter, economizer, oil cooler, automatic control valve, and common base
